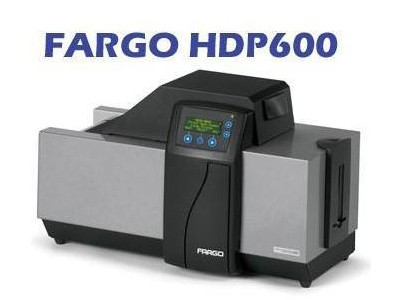

全新的針對CR80卡系列，
專業的熱升華，熱轉印原理，
具有加裝防偽膜功能，
寫各種智能卡的模塊于一體的多功能證卡打印機！
技術參數
| |
列印方法 | HDP 染色升華/樹脂熱轉印 |
解析度 | 300DPI |
色彩 | 高達1670萬種或256色/像素 |
列印色帶選擇 | 全色帶(Y,M,C)* 全色帶 + 黑色（Y,M,C,K） * 全色帶 + 2黑色（Y,M,C,K,K）* |
打印速度 | 44秒/張 |
卡片尺寸 | CR-80 (3.375"L*2.125"W/8506mmL*54mmW) |
打印區域 | Over-the-edge on CR-80 cards |
打印尺寸 | 標準的CR-80卡卡尺寸：3.375"L*2.125"W/85.6mmL*54mmw |
字體 | true type fonts() |
卡的厚度 | Print only:.030"(30mil)to .070(70mil)/.762mm to 1.778mm |
卡片類型 | ABS ,PVC ,PET ,PETG ,proximity,smart and mag stripe cards,optical memory cards |
進卡槽容量 | 200 cards(.030"/.762mm) |
出卡槽容量 | 100 cards(.030"/.762mm) |
內存 | 8MB RAM |
軟件驅動 | Windows 2000/XP |
編碼選項 | ISO Magnetic stripe Encoding Module,dual high-and low-coercivity, tracks1,2,and 3;JIS II Magnetic Stripe Encoding Module;E-Card Docking station(required for all e-card options or 3rd party smart Card Encoder(HID iCLASS and MIFARE); Contact Smart Card Encoder reads from and Writes to all ISO7816-1/2/3/4 memory and microprocessor smart cards(T=0,T=1)as well as synchronous cards; Prox Card Encoder (HID read-only) |
系統要求 | IBM-PC or compatible, windows 2000/XP, Pentium class 133MHZ computer with 32MB of RAM or higher,200MB free hard disk space or higher and available USB port |
接口 | USB1.1(兼容USB2.0) |
運轉溫度 | 65°to 80°F/18°to 27°C |
濕度 | 20- 80 % non-condensing |
電壓 | 100-240 VAC , 4.25A |
頻率 | 50/60 Hz |
熒屏 | 用戶界面友好，4行LCD顯示 |
重量 | 17.7KG |
其它選項 | 32MB RAM Upgrade Kit; Print cleaning Kit ;Exteral Print Server(Windows only;required for stand-alone networking of printer/encoders); Card Laminatio Module; Card Encoding Module |
